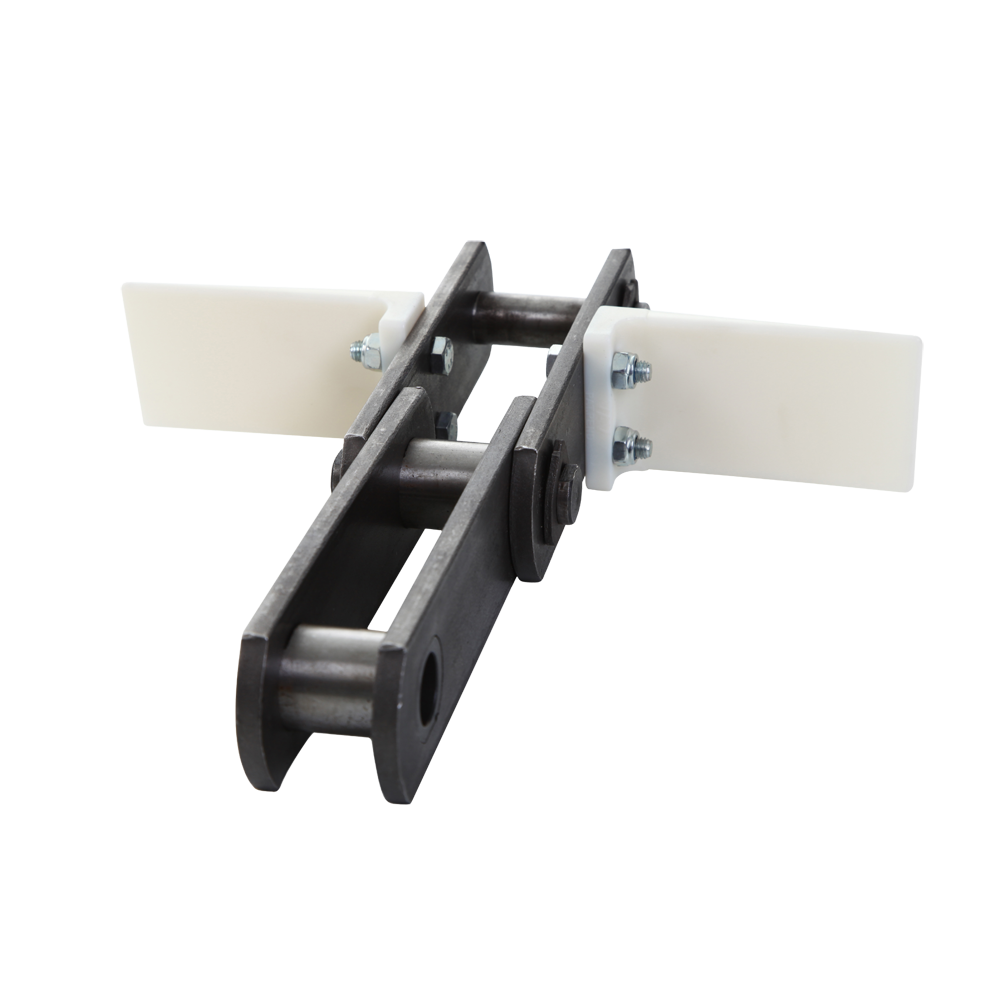

Because the chain rests on the plastic scrapers, there is no steel-on-steel contact. This saves energy, reduces noise and saves costs. In addition, they are easy to (dis)assemble and there is no need for guide and wear strips. There are several types available: standard Nylon, heat-resistant Zytel, glass fibre reinforced, FDA quality and a detectable version. They can be mounted on both the drop forged chain and the double drag link chain. The table below shows the various types with the associated chain.

These scrapers are also commonly referred to as cleaning strips, sweepers, plastic sweeping strips, residue-free makers, L-shaped cleats or plastic profiles.


Plastic flights (parameters in mm)
Length x height	Cc. distance of the holes	Drop forged chain Pitch	Double drag link chain Pitch / plates
117 x 45	20	102, 125	80, 100, 125 / 35x5
137 x 45	20	102, 125	80, 100, 125 / 35x5
180 x 45*	20	102, 125	80, 100, 125 / 35x5
162 x 55	25	-	125/40x6, 125/45x6
112 x 58*	30	142, 150	125, 150, 160/50x8, 150/50x6
162 x 58***	30	142, 150	125, 150, 160/50x8, 150/50x6
212 x 58*	30	142, 150	125, 150, 160/50x8, 150/50x6
262 x 58*	30	142, 150	125, 150, 160/50x8, 150/50x6
300 x 58**	30	142, 150	125, 150, 160/50x8, 150/50x6

* Also available in heat resistant Zytel
** Also available in wear resistant and stiffer fiberglass version
*** Also available in heat resistant Zytel or FDA quality


Characteristics of VAV Plastic flights
Type	Nylon	Fiberglass	FDA-quality	Zytel	Detectable
Colour	White	White	White	Red	Blue
Noice reducing	✔✔	✔	✔✔	✔✔	✔✔
Flexibel	✔✔		✔✔	✔	✔✔
Detectable					✔✔
FDA Quality			✔✔		✔✔
Temperature resistance	-20 / +70°C	-20 / +70°C	-20 / +70°C	+80 / +110°C	-20 / +70°C
