D-Bucket

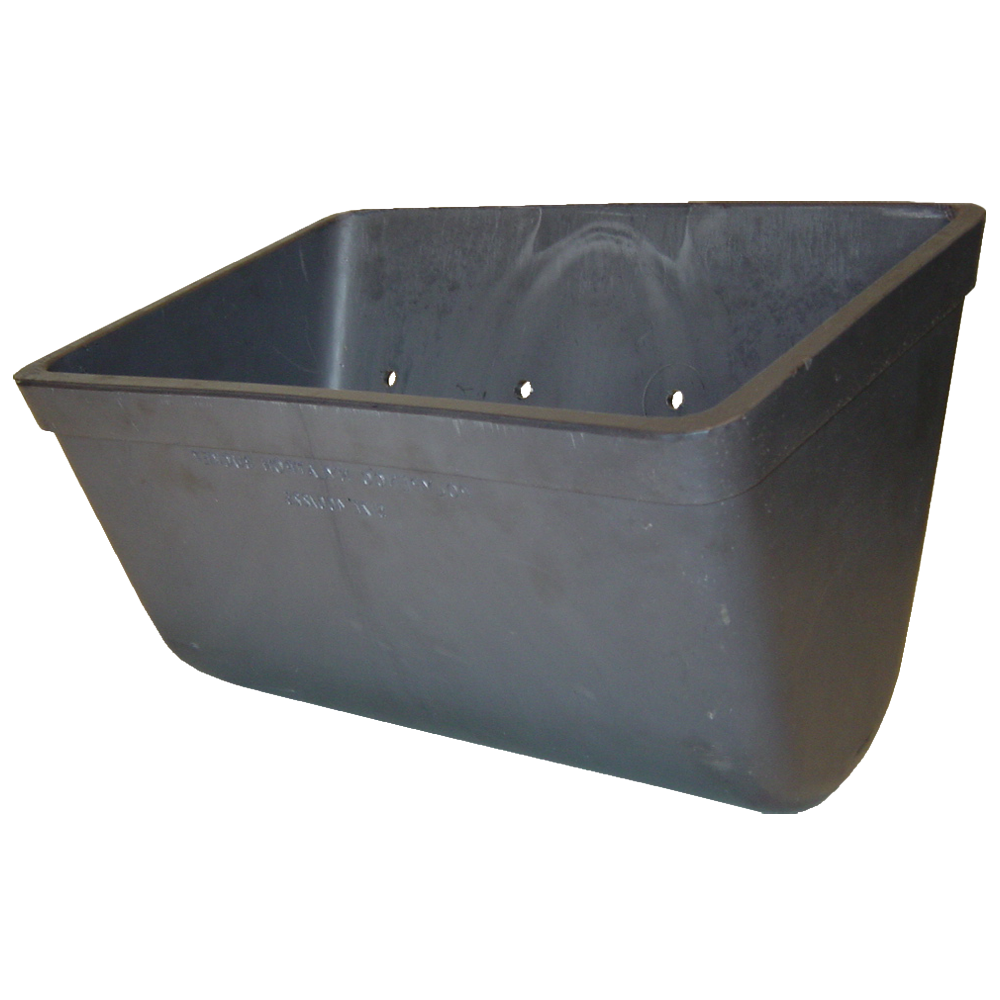

This durable D-Bucket has standard reinforcements on front lip and side walls. Because this is a deep bucket, it has a large volume. The D-type buckets are robust and thus highly suitable for raw materials as well as other industrial applications. Available in HDPE and nylon.


Plastic elevator bucket type D (parameters in mm)
Type		Size/weight						Volume (L)		Max
		b	a	h1	h2	t	Kg	Z2	Z3	Buckets/m
D	4 x 3	107	81	75	51	5	0.078	0.32	0.25	10
D	5 x 4	133	113	106	65	6.5	0.165	0.85	0.59	7
D	6 x 4	159	108	103	67	6.5	0.185	0.87	0.65	7.2
D	7 x 4	184	108	103	67	6.5	0.205	1.04	0.75	7.2
D	6 x 5	168	140	130	80	6.5	0.32	1.48	1.1	5.7
D	7 x 5	192	140	130	80	6.5	0.355	1.73	1.2	5.7
D	8 x 5	211	140	130	80	6.5	0.385	1.92	1.41	5.7
D	8 x 6	211	168	154	95	7.5	0.53	2.83	2.08	4.9
D	9 x 5	237	140	130	80	7	0.475	2.41	1.75	5.7
D	9 x 6	237	168	154	95	7.25	0.56	3.23	2.34	4.9
D	10 x 6	266	168	154	95	7.25	0.588	3.62	2.58	4.9
D	11 x 5	289	140	130	80	7	0.54	2.75	2.01	5.7
D	11 x 6	287	168	154	95	7.25	0.645	4.01	2.83	4.9
D	12 x 6	313	168	154	95	7.5	0.76	4.44	3.16	4.9
D	13 x 6	338	168	154	95	7.25	0.735	4.74	3.44	4.9
D	11 x 7	287	197	180	114	8	0.935	5.39	3.95	4.2
D	12 x 7	326	197	180	127	8	1.01	5.81	4.35	4.2
D	13 x 7	343	197	180	127	8	1.13	6.52	5.07	4.2
D	14 x 7	373	197	180	114	8	1.11	6.9	5.22	4.2
D	15 x 7	392	197	180	127	9	1.305	7.61	6.07	4.2
D	16 x 7	427	197	180	127	9	1.23	7.94	6.32	4.2
D	12 x 8	331	222	206	143	10	1.445	7.45	5.77	3.6
D	14 x 8	378	222	206	143	10	1.55	8.76	6.87	3.6
D	15 x 8	392	222	206	143	10	1.555	9.47	7.94	3.6
D	16 x 8	434	222	206	143	10	1.74	10.38	8.1	3.6
D	18 x 8	473	222	206	143	10	1.895	11.5	9.07	3.6
D	20 x 8	520	225	210	150	10.5	2.23	13.11	10.6	3.6

Z2 = bruto liter Volume, Z3 = net liter Volume.
These elevator buckets have no holes, but those may be drilled according to the client’s specifications.
These buckets are always supplied with a flat back wall (holes).
