Monocast GSM Bucket
Monocast GSM Bucket

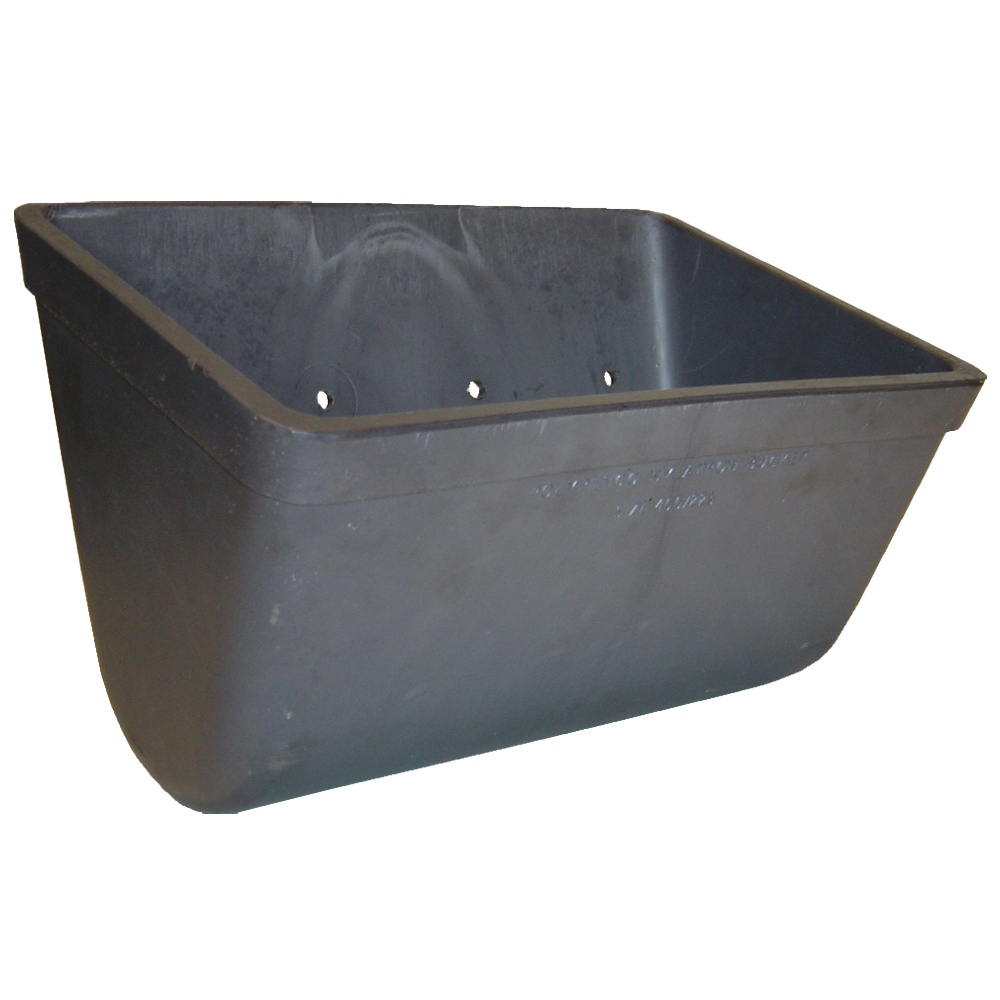

Monocast GSM elevator buckets are nylon cast, also containing molybdenum disulfide as an additive. The deep elevator bucket lends itself perfectly to the upward conveyance of glass, shards of glass, cement, sand, and other abrasive products.
Two types of these abrasion-resistant elevator buckets are available:
* DIN series, with reinforcements according to DIN 15234
* NBA series, without reinforcements
| Monocast GSM elevator bucket NBA-serie (parameters in mm) | |||||||||
| Type | Size/weight | Volume (L) | Max | ||||||
| b | a | h1 | h2 | t | Kg | Z2 | Z3 | Buckets/m | |
| NBA 8 | 206 | 111 | 127 | 73 | 8 | 0.59 | 1.2 | 0.98 | 5.6 |
| NBA 10 | 254 | 123 | 141 | 82 | 8 | 0.79 | 1.85 | 1.44 | 5.2 |
| NBA 12 | 318 | 167 | 164 | 93 | 8 | 1.13 | 4.5 | 2.7 | 5 |
| NBA 14 | 362 | 179 | 190 | 109 | 8 | 1.53 | 6.1 | 4 | 4.1 |
| NBA 15 | 370 | 206 | 223 | 131 | 8 | 1.8 | 8.57 | 5.76 | 3.6 |
| NBA 16 | 413 | 210 | 203 | 113 | 8 | 1.81 | 9.3 | 5.6 | 4 |
| NBA 18 | 457 | 198 | 229 | 143 | 8 | 2.5 | 11.1 | 7.5 | 3.5 |
| Monocast GSM elevator buckets DIN-serie (parameters in mm) | |||||||||
| Type | Size/weight | Volume (L) | Max | ||||||
| b | a | h1 | h2 | t | Kg | Z2 | Z3 | Buckets/m | |
| DIN 200/160 | 224 | 178 | 209 | 109 | 8 | 1.25 | 3.65 | 2.23 | 4 |
| DIN 250/180 | 274 | 199 | 233 | 121 | 8 | 1.59 | 5.6 | 3.54 | 3.6 |
| DIN 315/200 | 339 | 219 | 260 | 135 | 8 | 2.38 | 9.9 | 5.39 | 3.3 |
| DIN 400/225 | 426 | 244 | 291 | 153 | 8 | 3.18 | 15.2 | 9.05 | 3 |
| DIN 500/250 | 526 | 269 | 328 | 176 | 8 | 4.2 | 23.92 | 14.38 | 2.7 |
| DIN 630/280 | 656 | 301 | 364 | 193 | 8 | 5.44 | 37.2 | 22.7 | 2.5 |
| DIN 800/315 | 830 | 330 | 400 | 212 | 8 | 9.2 | 59 | 38 | 2.2 |
| DIN1000/355 | 1,035 | 375 | 450 | 236 | 8 | 15 | 95 | 60 | 2 |
Z2 = gross volume in liters, Z3 = net volume in liters.
These elevator buckets have no holes, but those may be drilled according to the client’s specifications.
